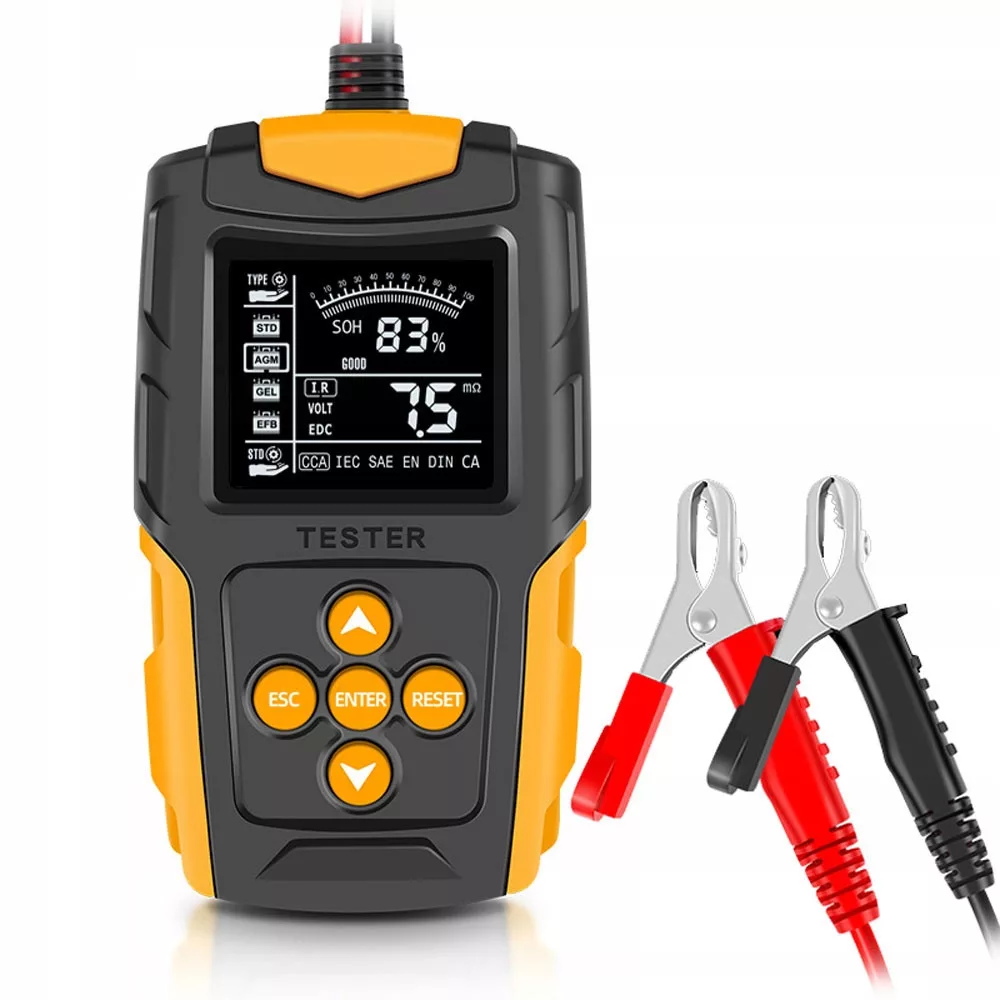

Tester de baterii auto LCD 12V/24V

Features:

With multiple protections, input overvoltage protection, reverse connection protection, poor contact of the test clip detection prompt, safer to use.

Quickly and accurately detect the battery status and prevent the car from breaking down midway.

It can be directly connected to the battery of the car for testing, no need to remove the battery, more convenient.

It can detect and display battery capacity SOC and health status SOH, which are displayed as a percentage.

Through the low frequency signal injection test, there is no need to connect a large load discharge test, and it will not cause damage to the battery.

The battery voltage status and battery discharge capacity can be detected, and the display can be switched by moving up/down buttons.

Wide application, it is suitable for car lead-acid starter batteries, including regular flooded, EFB, AGM tablet battery, AGM winding battery, GEL battery,WET, etc.

Specifications:

Material: ABS

Applicable Battery Voltage: 12V/24V

Voltage Measure Range: 8-30V

Test Range: 3AH-200AH

Test result: SOH, SOC, CCA Value, IR,  etc.

Test standards: CCA, SAE,DIN, IEC, EN, CA

Working Temperature: -40-60℃

Item Size: 150 * 90 * 35mm/ 5.9 * 3.5 * 1.4in

Item Weight: 325g/ 11.5oz

Package Size: 165 * 110 * 55mm/ 6.5 * 4.3 * 2.2in

Package Weight: 400g/ 14.1oz

Note:

Due to the different monitor and light effect, the actual color of the item might be slightly different from the color shown on the pictures.

Packing List:

1 * Car Battery Tester

1 * Manual
