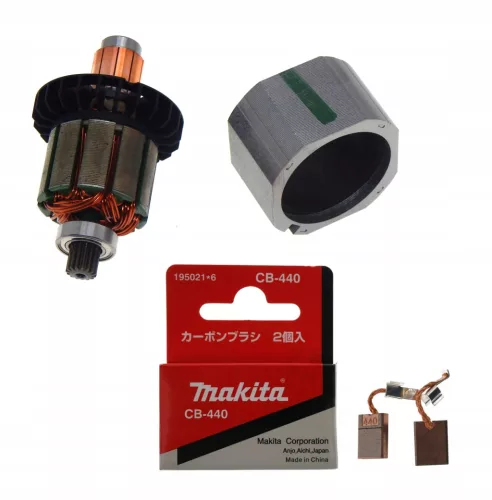

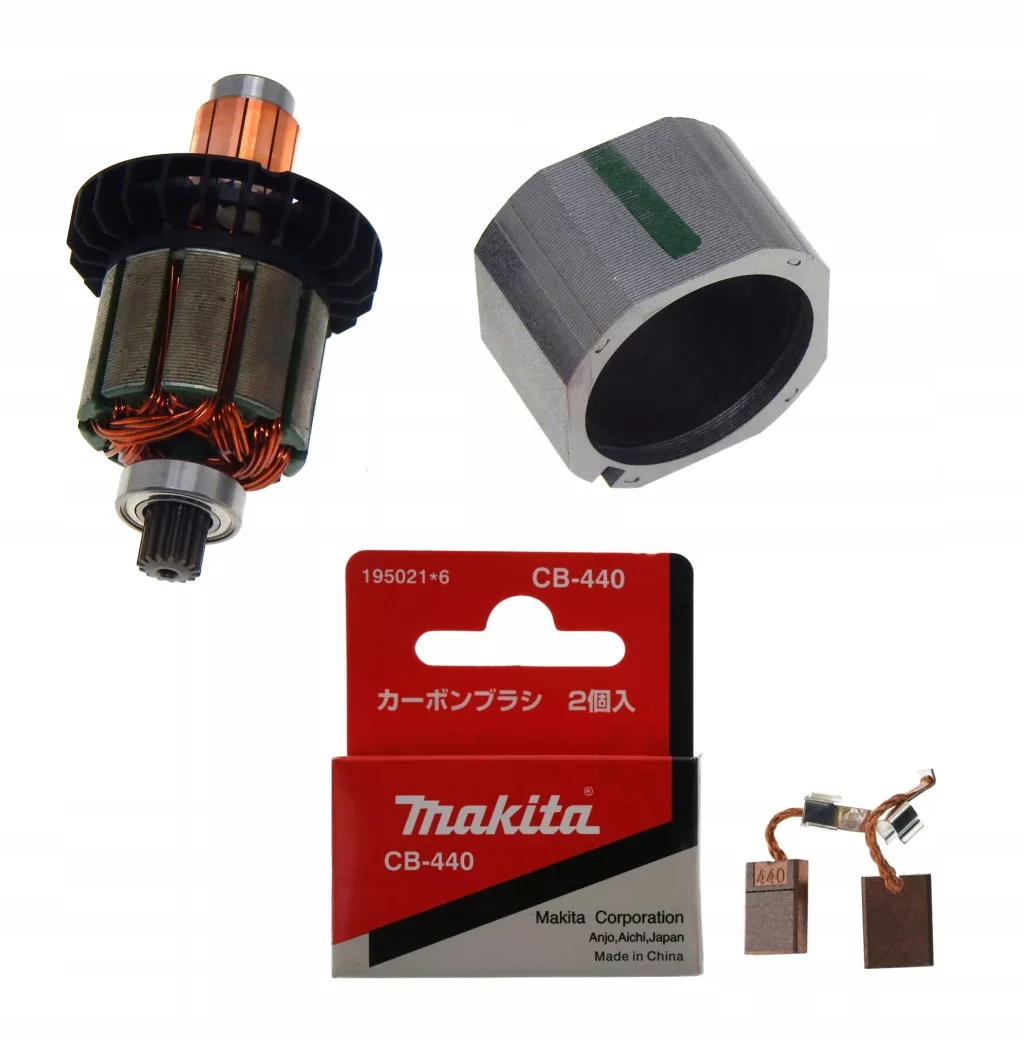

Rotor Makita pentru DDF482D + stator + perii CB440 619583-5 632J70-7

Makita wirnik do DDF482D + stojan + szczotki CB440

•
  Producent: Makita



• Kod producenta: 619380-9 / 619583-5 / 632J70 / 194427-5 195021-6


• Pozycja na schemacie: 11, 010, 13

Zastosowanie:

Makita: DDF482, DHP482

Lista części od DDF482

1 851E35-2 DDF482 NAME PLATE 1

2 183B65-0 HOUSING SET 1

2 C10 263005-3 RUBBER PIN 6 2

2 D10 INC. 22

3 266429-2 TAPPING SCREW 3X16 9

4 123442-2 SPEED CHANGE LEVER ASSEMBLY 1

4 C10 233438-6 COMPRESSION SPRING 4 2

5 419041-9 F/R CHANGE LEVER 1

6 650753-7 SWITCH C3HA-Z1A-TLF1MS 1

6 C10 620444-4 LED CIRCUIT 1

7 251468-5 - FLAT HEAD SCREW M6X22 1

8 766027-7 KEYLESS DRILL CHUCK 13 1

9 123444-8 GEAR ASSEMBLY 1

009-1 127323-2 GEAR ASSEMBLY 1

009-2 127511-1 GEAR ASSEMBLY 1

10 632F32-1 YOKE UNIT 1

010-1 632J70-7 YOKE UNIT 1

11 619380-9 ARMATURE 1

12 632F22-4 BRUSH HOLDER COMPLETE 1

12 D10 INC. 13

13 194427-5 CARBON BRUSH SET CB-440 1

14 456099-7 REAR COVER 1

15 266429-2 TAPPING SCREW 3X16 2

16 911006-2 PAN HEAD SCREW M3X8 1

016-1 652066-2 +PAN HEAD SCREW M3X9 WITH W 1

17 689070-8 HEAT SINK 1

18 232182-2 LEAF SPRING 1

19 644808-8 TERMINAL 1

22 183B65-0 HOUSING SET 1

22 C10 263005-3 RUBBER PIN 6 2

22 D10 INC. 2

A01 251314-2 + SCREW M4X12 1

A02 346317-0 HOOK 1

A03 784637-8 +- BIT 2-45 1

A04 141856-3 PLASTIC CARRYING CASE COMPLETE 1

A04A C10 162302-3 LATCH 2

A04A C20 324207-7 SHAFT 1

A04A C30 451749-9 HANDLE 1

A05 450128-8 BATTERY COVER 1

A06 ***DC18RC DC18RC FAST CHARGER 1

A07A 196399-0 BATTERY BL1840 SET 2

A07-1A 197265-4 BATTERY BL1840B SET 2

A07-1C 194204-5 BATTERY BL1830 SET 2

A07-2A 197265-4 BATTERY BL1840B SET 2

A07-2C 197600-6 BATTERY BL1830B SET 2

A07-3C 197600-6 BATTERY BL1830B SET 2

A08A 807S73-6 DDF482RME PLASTIC CASE LABEL 2

A08C 808N51-9 DDF482RFE PLASTIC CASE LABEL 2
